VC04B90S04
Valcon® swage fitting DKR 90° BF 90°

Product info

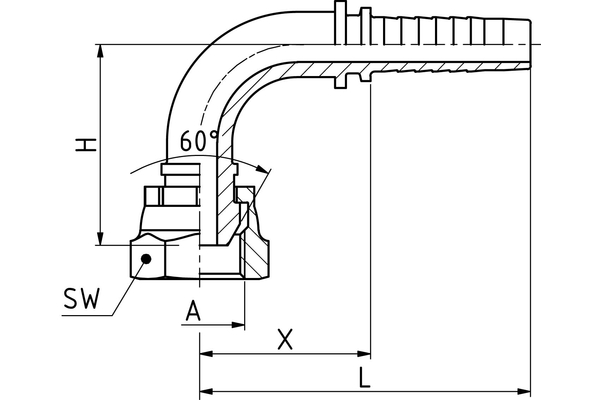

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  H [mm]:	28,0
  d [mm]:	4,0
  T:	1/4-19
  E [mm]:	19
  C [mm]:	25,0
  L [mm]:	50,0
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
