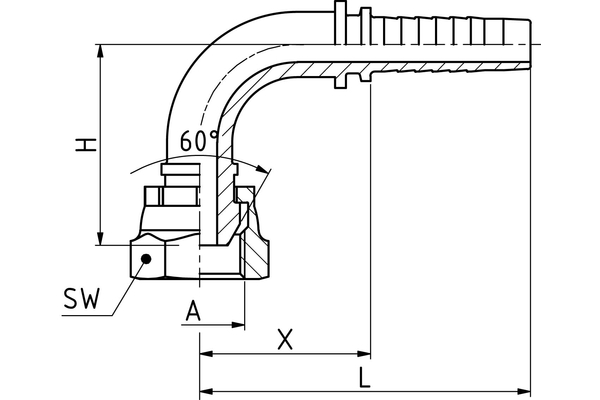

VC06B90S08
Valcon® swage fitting DKR 90° BF 90°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  H [mm]:	42,0
  d [mm]:	9,5
  T:	3/8-19
  E [mm]:	22
  C [mm]:	39,5
  L [mm]:	72,5
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
