VC08B90S06

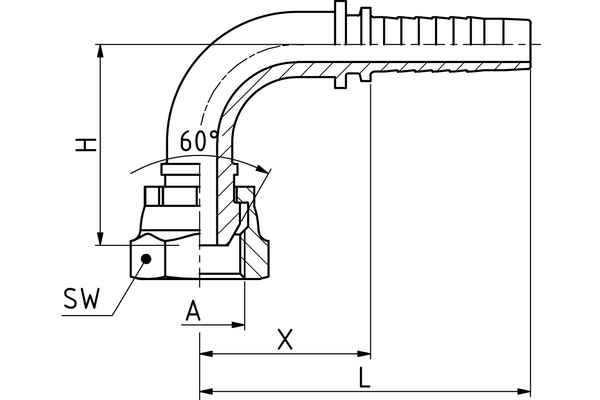

Valcon® swage fitting DKR 90° BF 90°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  H [mm]:	37,0
  d [mm]:	7,0
  T:	1/2-14
  E [mm]:	27
  C [mm]:	33,0
  L [mm]:	62,5
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
