VC10B90S10
Valcon® swage fitting DKR 90° BF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread

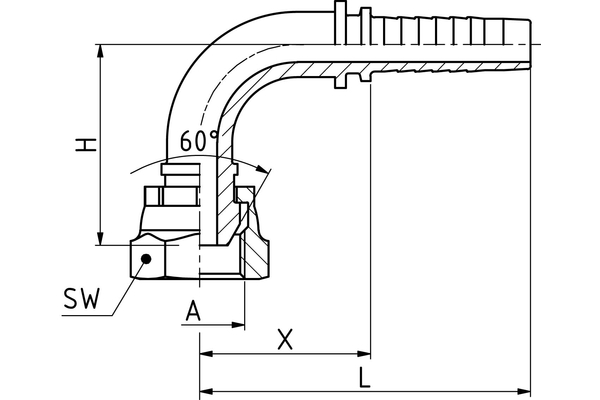

  H [mm]:	49,0
  d [mm]:	12,0
  T:	5/8-14
  E [mm]:	30
  C [mm]:	45,0
  L [mm]:	79,5
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
