VC12B90S10
Valcon® swage fitting DKR 90° BF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread

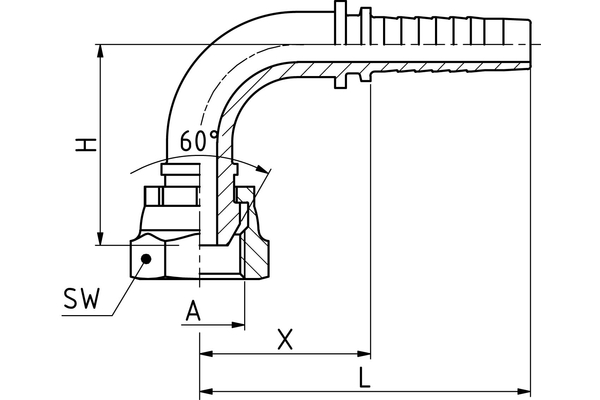

  H [mm]:	51,5
  d [mm]:	12,0
  T:	3/4-14
  E [mm]:	32
  C [mm]:	46,5
  L [mm]:	81,0
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
