VC16B90S16

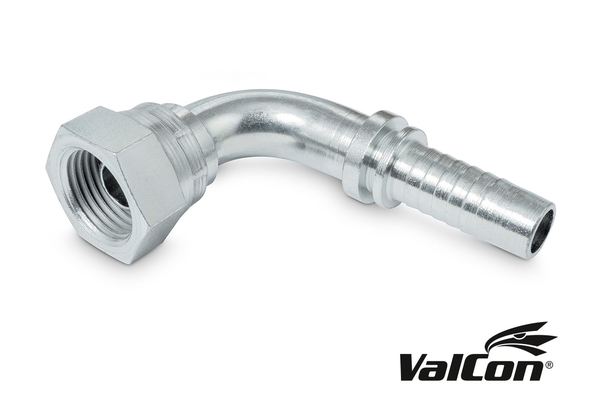

Valcon® swage fitting DKR 90° BF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread

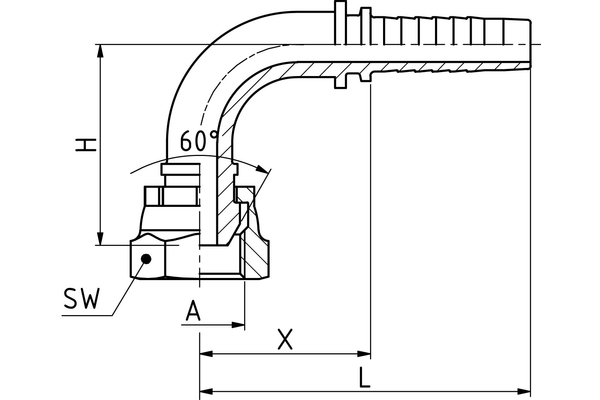

  H [mm]:	65,0
  d [mm]:	20,0
  T:	1-11
  SW1 [mm]:	41
  E [mm]:	38
  C [mm]:	70,0
  L [mm]:	123,5
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
