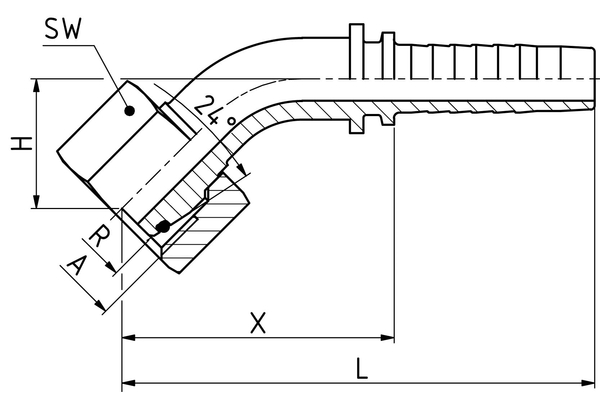

VC16MSOF10-45S05
Valcon® swage fitting DKOL 45° MSOF 45°

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	17,0
  d [mm]:	5,5
  Pipe E [mm]:	10
  T:	M16x1,5
  E [mm]:	19
  C [mm]:	52,5
  L [mm]:	80,5
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
