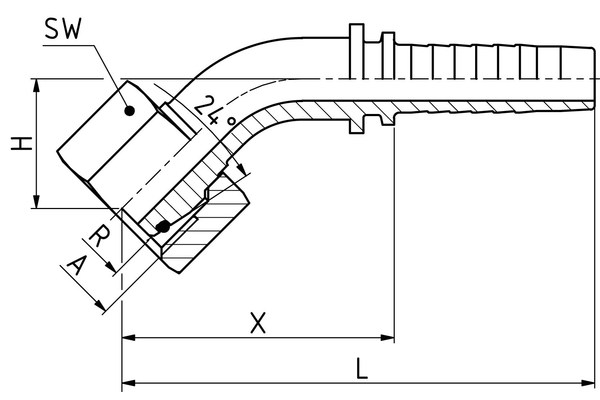

VC20MSOF12-45S06
Valcon® swage fitting DKOS 45° MSOF 45°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	17,0
  d [mm]:	7,0
  Pipe E [mm]:	12
  T:	M20x1,5
  E [mm]:	24
  C [mm]:	57,0
  L [mm]:	87,0
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
