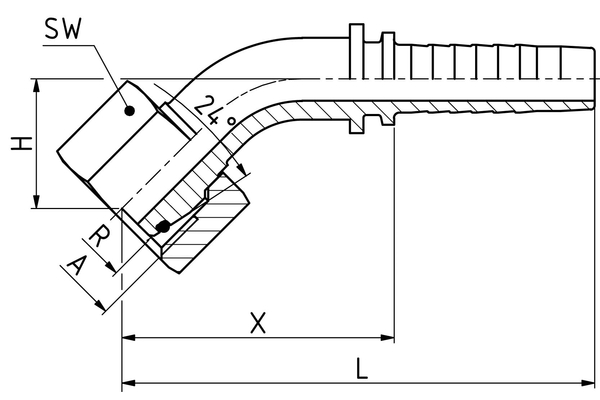

VC24MSOF16-45S08
Valcon® swage fitting DKOS 45° MSOF 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	20,0
  d [mm]:	9,5
  Pipe E [mm]:	16
  T:	M24x1,5
  E [mm]:	30
  C [mm]:	65,5
  L [mm]:	97,5
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
