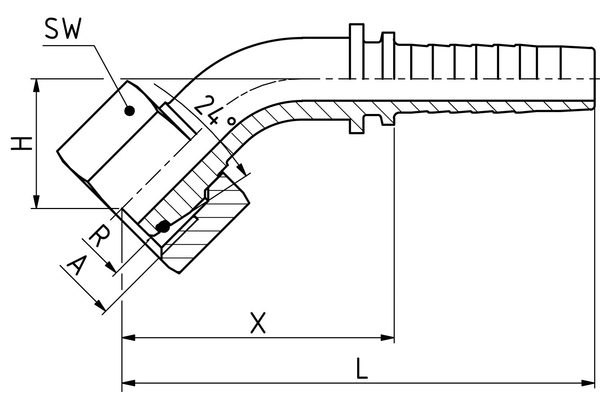

VC36MSOF25-45S12
Valcon® swage fitting DKOS 45° MSOF 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	32,0
  d [mm]:	15,0
  Pipe E [mm]:	25
  T:	M36x2
  E [mm]:	46
  C [mm]:	72,0
  L [mm]:	121,5
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
