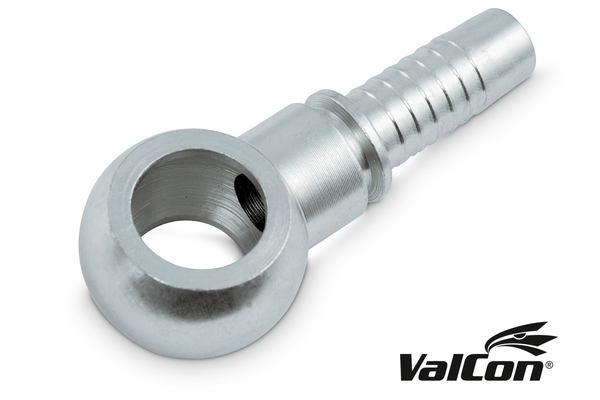

VC10MRN04
Valcon® swage fitting RGN MRN

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	Ring nipple according to DIN 7642 for metric banjo bolts
  d [mm]:	4,0
  Pipe E [mm]:	25
  T:	M10
  Ringnipple bore hole [mm]:	M10
  E [mm]:	17
  C [mm]:	25,0
  L [mm]:	52,5
  Connection name Indunorm:	MRN
  Connection type:	RGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
