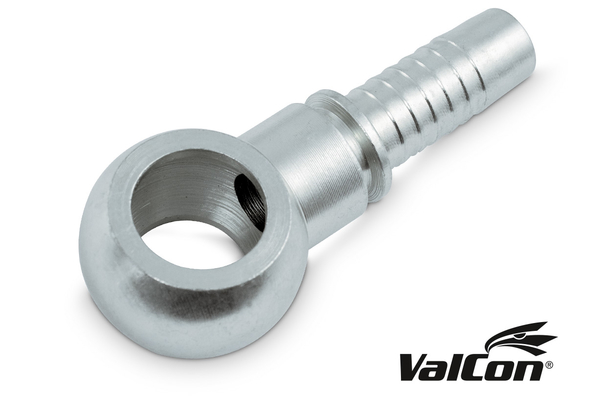

VC14MRN04
Valcon® swage fitting RGN MRN

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	Ring nipple according to DIN 7642 for metric banjo bolts
  d [mm]:	4,0
  Pipe E [mm]:	27
  T:	M14
  Ringnipple bore hole [mm]:	M14
  E [mm]:	24
  C [mm]:	21,5
  L [mm]:	49,0
  Connection name Indunorm:	MRN
  Connection type:	RGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
