VC08MOSE04

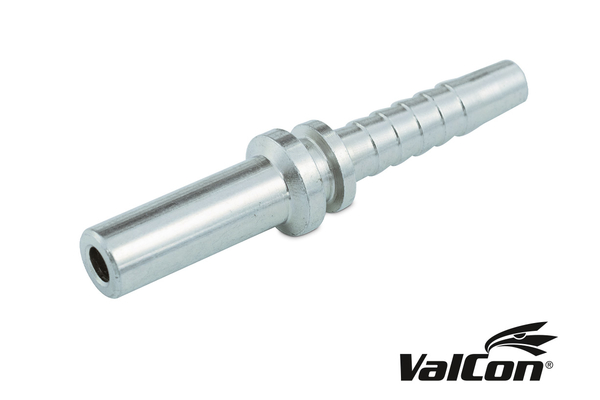

Valcon® swage fitting BEL/BES MOSE

Product info

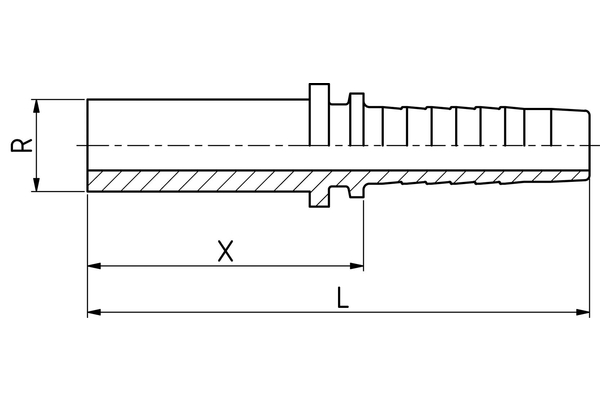

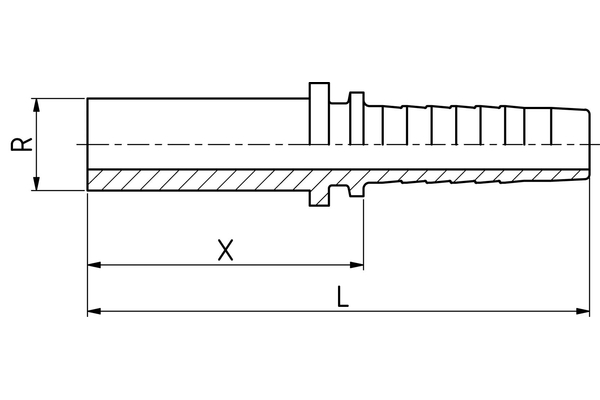

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut
  d [mm]:	4,0
  Type:	L/S
  Pipe E [mm]:	8
  E [mm]:	4
  C [mm]:	30,0
  L [mm]:	57,0
  Connection name Indunorm:	MOSE
  Connection type:	BEL/BES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
