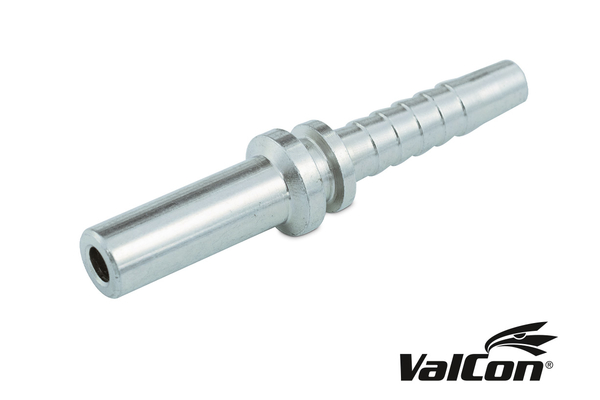

VC18MOSE10
Valcon® swage fitting BEL/BES MOSE

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut

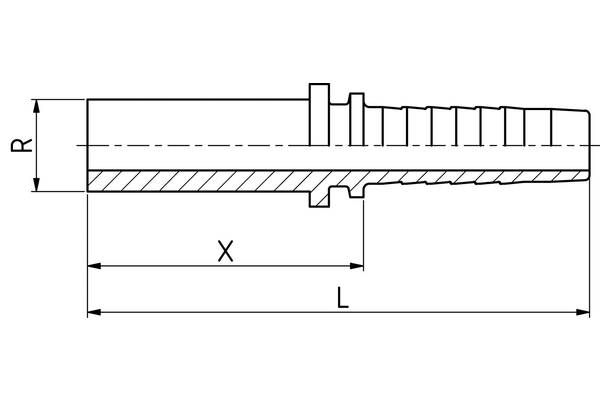

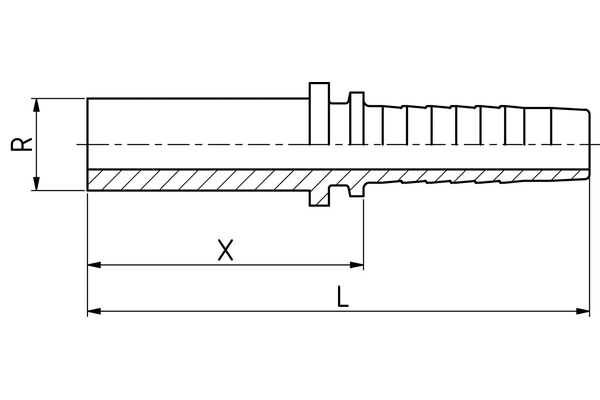

  Pipe Ø R [mm]:	18
  d [mm]:	12,0
  Type:	L
  Pipe E [mm]:	18
  E [mm]:	12
  C [mm]:	34,0
  L [mm]:	68,5
  Connection name Indunorm:	MOSE
  Connection type:	BEL/BES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
