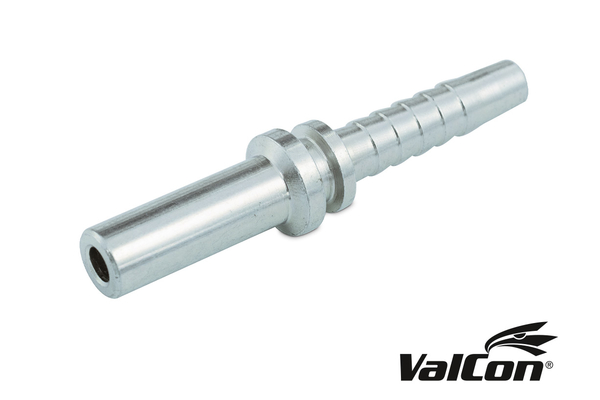

VC22MOSE12
Valcon® swage fitting BEL/BES MOSE

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4"
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut

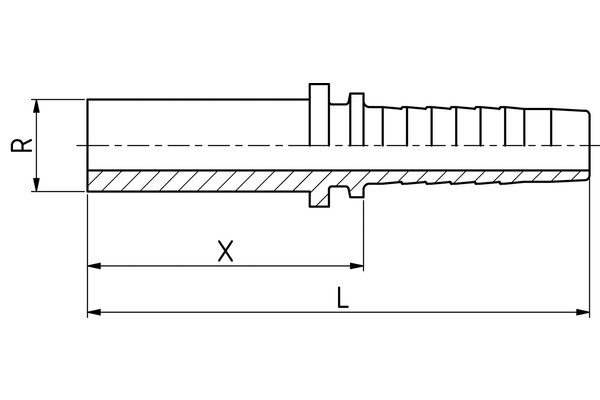

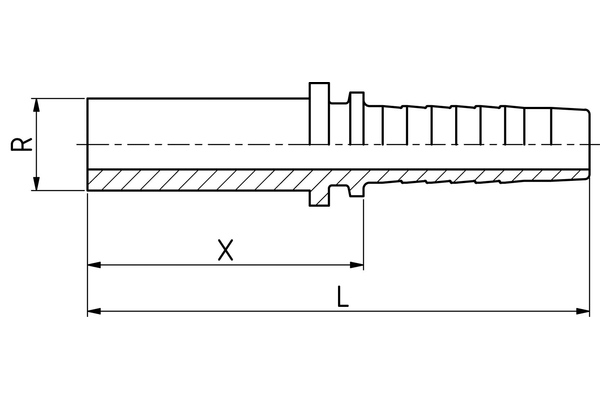

  Pipe Ø R [mm]:	22
  d [mm]:	15,0
  Type:	L
  Pipe E [mm]:	22
  E [mm]:	15
  C [mm]:	36,0
  L [mm]:	76,0
  Connection name Indunorm:	MOSE
  Connection type:	BEL/BES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
