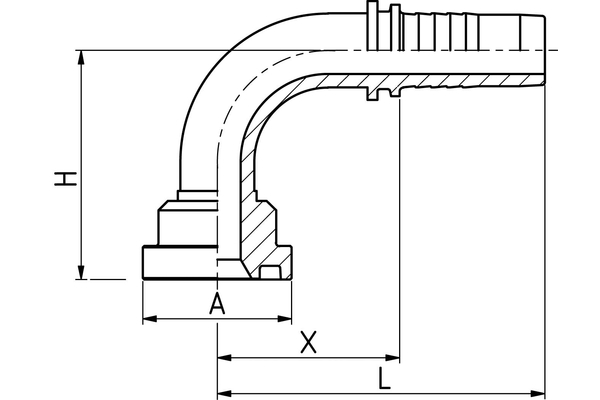

VC12SFH90S08
Valcon® swage fitting SFL 3.000 PSI 90° SFH 90°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	Flange head SAE J514 (ISO 6162) standard series 3000 PSI
  L1 [mm]:	72,5
  H [mm]:	50,0
  d [mm]:	9,5
  T:	3/4
  C [mm]:	39,0
  L [mm]:	72,5
  Connection name Indunorm:	SFH 90°
  Connection type:	SFL 3000 PSI 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
