VC08J90S04

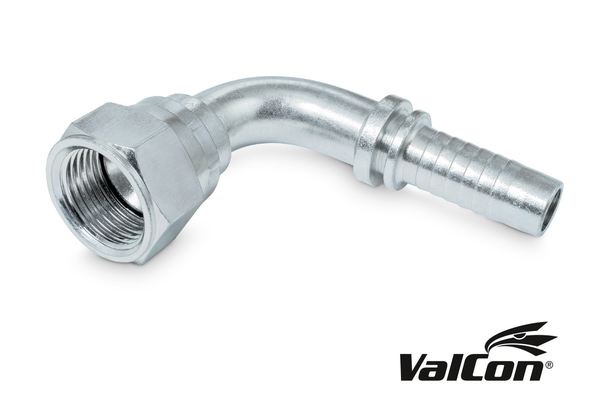

Valcon® swage fitting DKJ 90° JF 90°

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

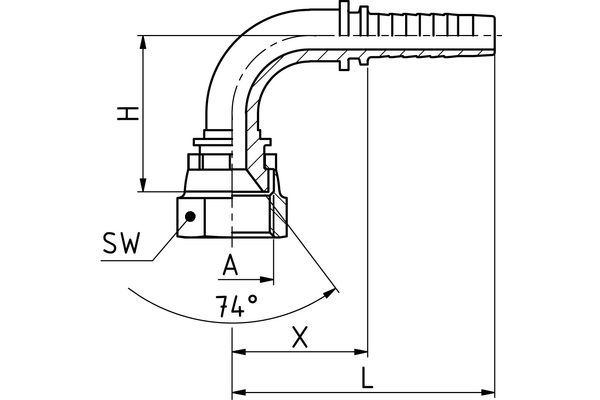

  H [mm]:	29,5
  d [mm]:	4,0
  T:	1/2-20
  E [mm]:	17
  C [mm]:	31,0
  L [mm]:	59,0
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
