ValCon® DKJ 90°

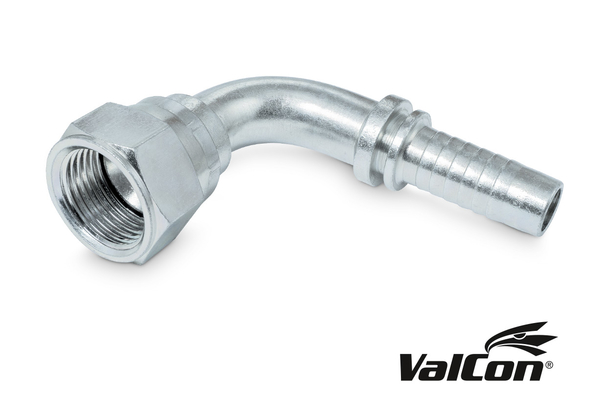

Similar image

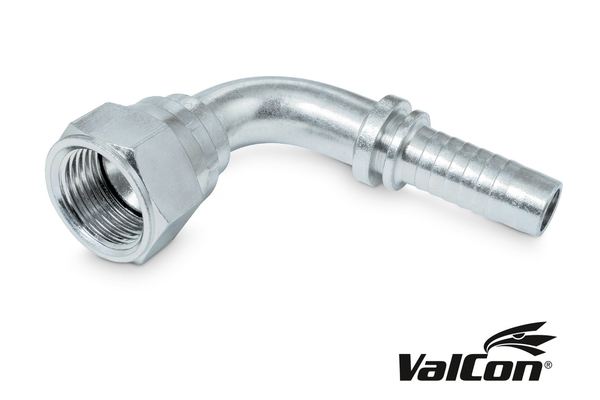

Similar image

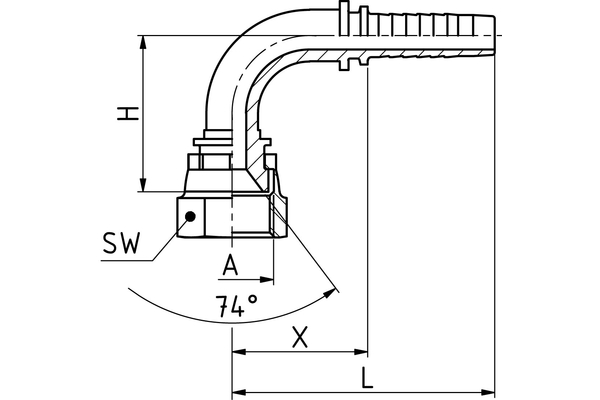

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

To accessories

Detail

Art. No.
VC07J90S04
%
SALE
VC08J90S05
%
SALE
VC09J90S06
%
SALE
VC12J90S08
%
SALE
VC14J90S10
%
SALE
VC17J90S12
%
SALE
VC19J90S12
%
SALE
VC21J90S12
%
SALE
VC21J90S16
%
SALE
VC08J90S04
%
SALE
VC09J90S04
%
SALE
VC09J90S05
%
SALE
VC12J90S06
%
SALE
VC14J90S08
%
SALE
VC17J90S10
%
SALE
VC14J90S12
%
SALE
VC14J90S16
%
SALE
DN
6
8
10
12
16
19
19
19
25
6
6
8
10
12
16
19
25
Size
04
06
08
10
12
04
04
05
06
08
10
12
16
Inch
1/4"
3/8"
1/2"
5/8"
3/4"
1/4"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
H [mm]
24,0
29,0
34,0
38,0
47,0
53,0
58,0
59,0
70,0
29,5
26,0
30,0
33,0
42,0
45,0
53,0
65,0
d [mm]
4,0
5,5
7,0
9,5
12,0
15,0
15,0
15,0
20,0
4,0
4,0
5,5
7,0
9,5
12,0
15,0
20,0
T
7/16-20
9/16-18
3/4-16
7/8-14
1.1/16-12
1/2-20
9/16-18
9/16-18
3/4-16
7/8-14
1.1/16-12
7/8-14
7/8-14
E [mm]
15
17
19
24
27
32
36
41
38
17
19
19
24
27
32
32
38
C [mm]
25,0
29,0
30,0
39,0
44,0
56,0
56,0
56,0
68,5
31,0
27,0
28,0
33,0
42,0
45,0
56,0
70,0
L [mm]
50,0
58,0
59,5
70,5
78,5
105,5
97,0
97,0
122,0
59,0
52,0
56,0
62,5
73,5
79,5
95,0
123,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 90°
    Connection type: DKJ 90°
    Construction form: 90°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
