VC17J90S10

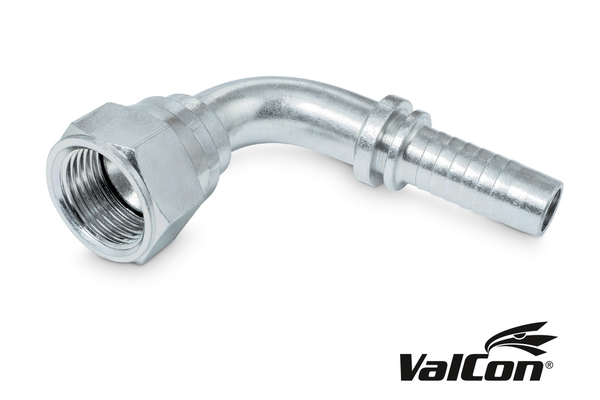

Valcon® swage fitting DKJ 90° JF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

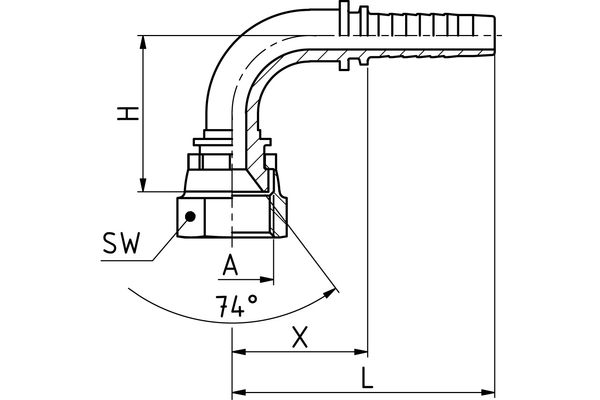

  H [mm]:	45,0
  d [mm]:	12,0
  T:	1.1/16-12
  E [mm]:	32
  C [mm]:	45,0
  L [mm]:	79,5
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
