VC14J90S16

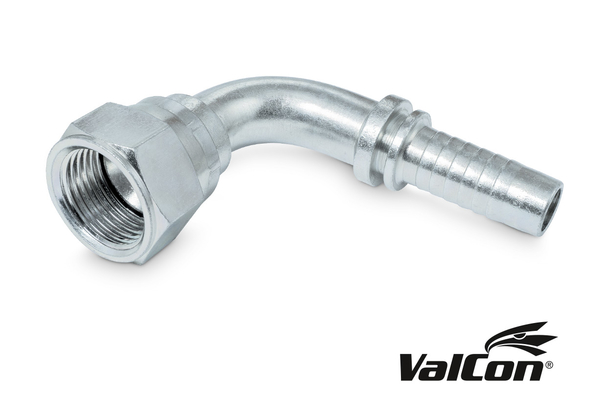

Valcon® swage fitting DKJ 90° JF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

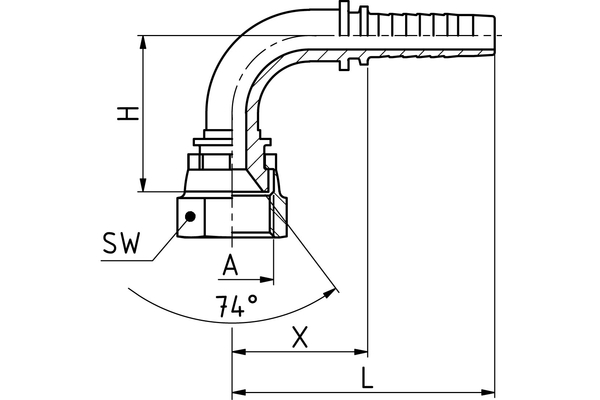

  H [mm]:	65,0
  d [mm]:	20,0
  T:	7/8-14
  E [mm]:	38
  C [mm]:	70,0
  L [mm]:	123,5
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
