Art. No.: VC19J90S12
List number: 05215242

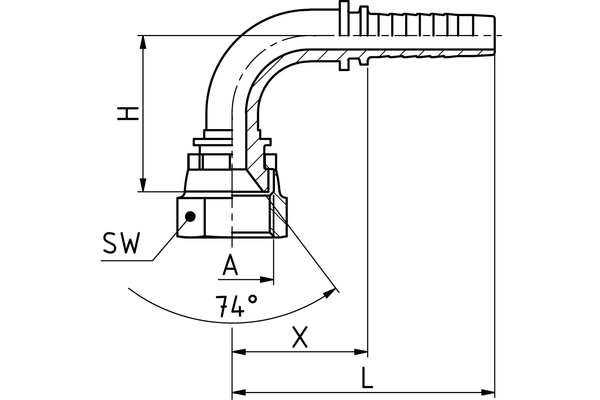

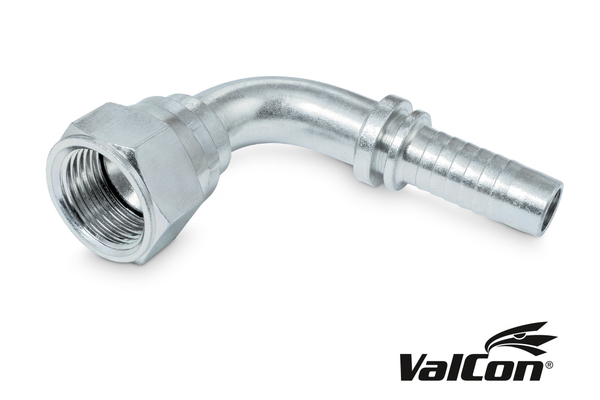

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
| DN: | 19 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| H [mm]: | 58,0 |
| d [mm]: | 15,0 |
| E [mm]: | 36 |
| C [mm]: | 56,0 |
| L [mm]: | 97,0 |
| Connection name Indunorm: | JF 90° |
| Connection type: | DKJ 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Surface: | CrIII |
| Type of fittings: | VC |
Reserve technical changes.
