VC09J90S05

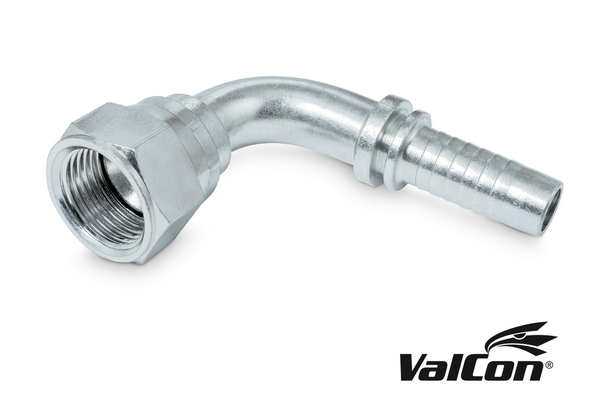

Valcon® swage fitting DKJ 90° JF 90°

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

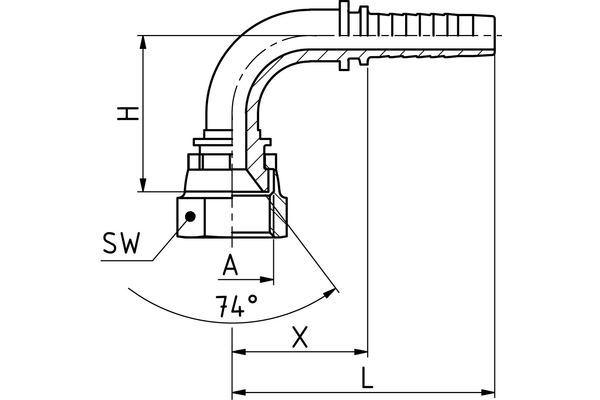

  H [mm]:	30,0
  d [mm]:	5,5
  T:	9/16-18
  E [mm]:	19
  C [mm]:	28,0
  L [mm]:	56,0
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
