VC14J90S08

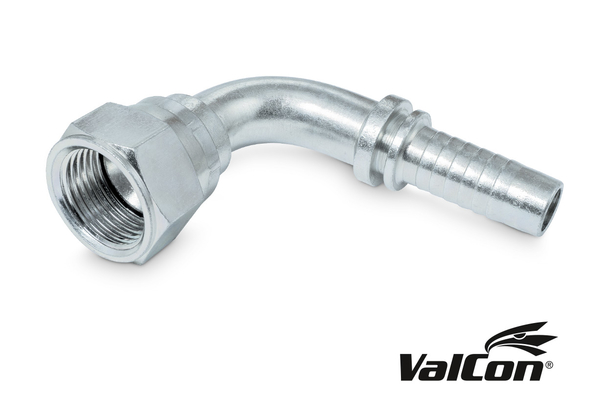

Valcon® swage fitting DKJ 90° JF 90°

Product info

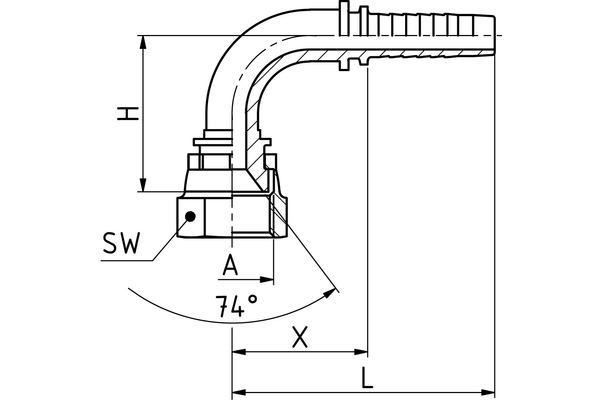

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  H [mm]:	42,0
  d [mm]:	9,5
  T:	7/8-14
  E [mm]:	27
  C [mm]:	42,0
  L [mm]:	73,5
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
