VC07J90S04

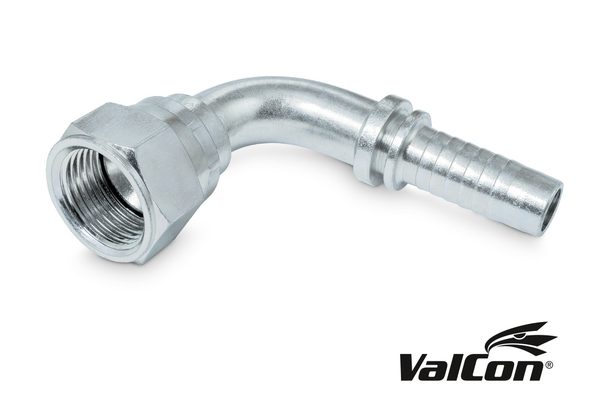

Valcon® swage fitting DKJ 90° JF 90°

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

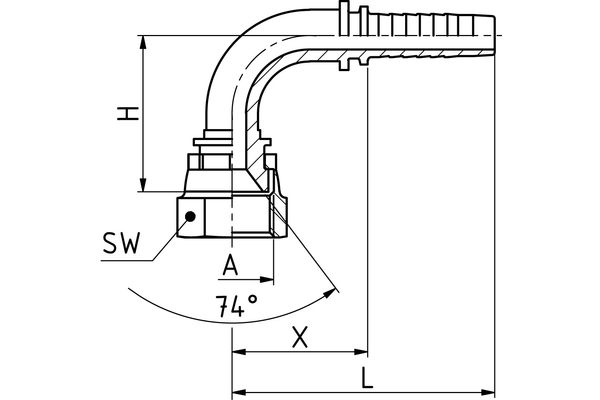

  H [mm]:	24,0
  d [mm]:	4,0
  T:	7/16-20
  E [mm]:	15
  C [mm]:	25,0
  L [mm]:	50,0
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
