Art. No.: VC21J90S16
List number: 05215246

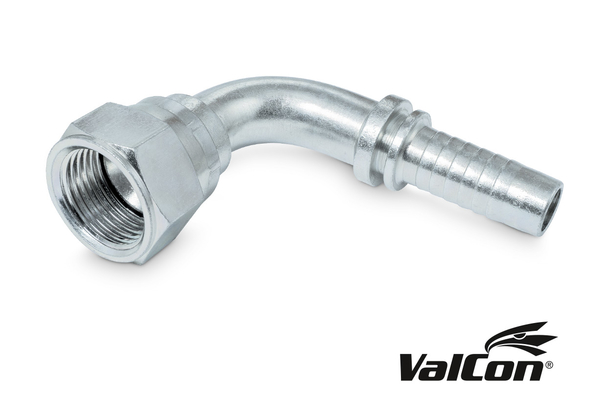

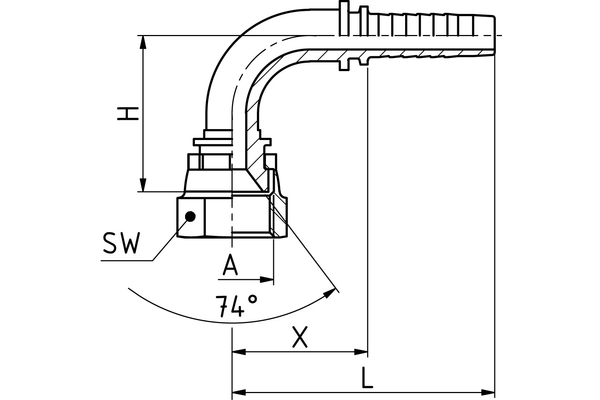

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
| DN: | 25 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| H [mm]: | 70,0 |
| d [mm]: | 20,0 |
| E [mm]: | 38 |
| C [mm]: | 68,5 |
| L [mm]: | 122,0 |
| Connection name Indunorm: | JF 90° |
| Connection type: | DKJ 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Surface: | CrIII |
| Type of fittings: | VC |
Reserve technical changes.
