XJ..HL

Detail

Art. No.
XJ02HL
%
SALE
XJ04HL
%
SALE
DN
04
06
Size
02
04
Inch
1/8
1/4

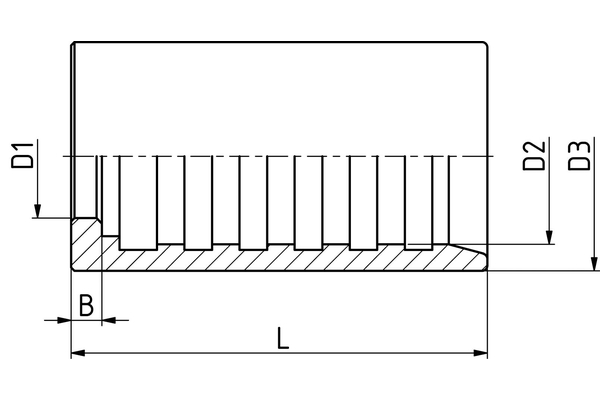

D2 [mm]
14,0
20,6
Thread + standard

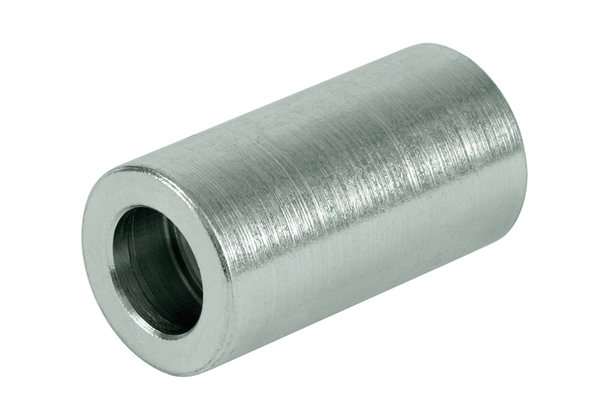

Swage ferrule for TP10HS/NC
Swage ferrule for TP10HS/NC
L [mm]
30,9
38,1
D [mm]
7,8
11,2
D1 [mm]
9,5
16,1
Quantity


Product info

  • Technical data
    Connection name Indunorm: XJ..HL
    Material: Free cutting steel
    Material: free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: 700 bar hydraulic tool series XJ
    application: Ferrule, no-skive
