HVR20
HVR

Product info

• Specifications

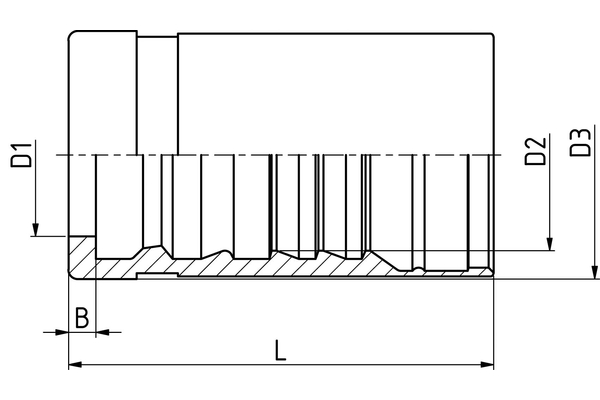

  DN:	31
  Size:	20
  Inch:	1.1/4
  D2 [mm]:	61,4
  Thread + standard:	Swage ferrule with pull-out protection, internal and external skive, for R15 (DN 31)
  L [mm]:	78,0
  b [mm]:	4,9
  D [mm]:	40,0
  D1 [mm]:	48,6
  Connection name Indunorm:	HVR
  Material:	Free cutting steel
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  application:	skive ferrule
