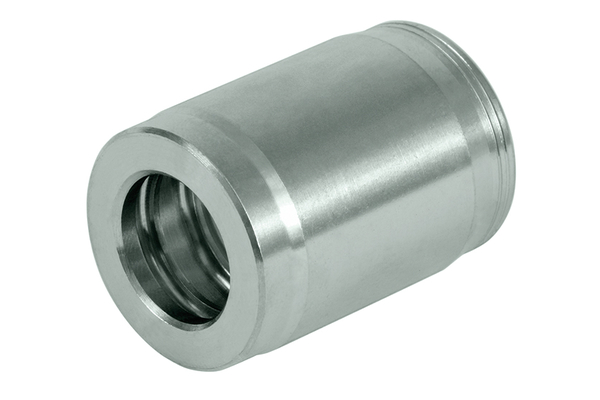

XV20C
XV..C

Product info

• Specifications

  DN:	31
  Size:	20
  Inch:	1.1/4

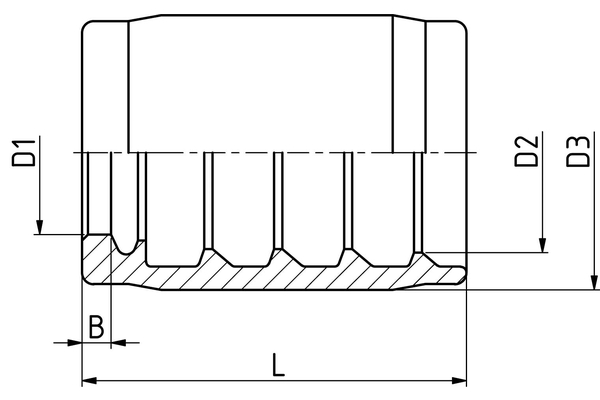

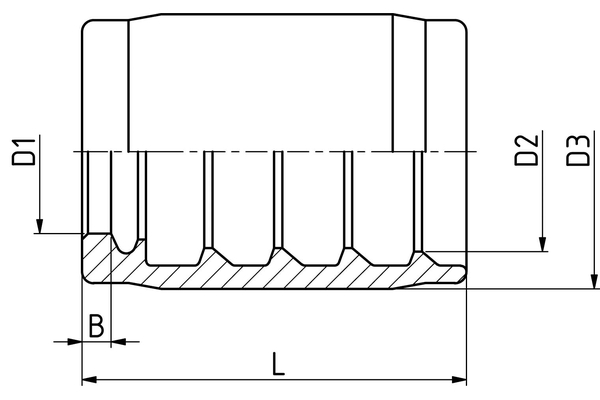

  D2 [mm]:	50,7
  Thread + standard:	Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
  L [mm]:	59,0
  b [mm]:	3,9
  D [mm]:	37,8
  D1 [mm]:	41,6
  Connection name Indunorm:	XV..C
  Material:	Free cutting steel
  Material:	free cutting steel
  Surface:	CrIII
  Type of fittings:	Universal series XV
  application:	Swage ferrule
