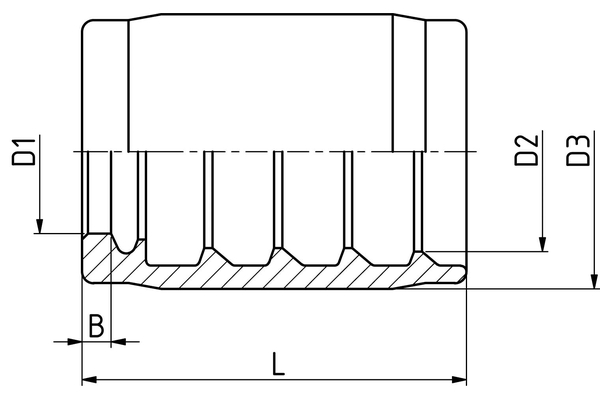

XV24C
XV..C

Product info

• Specifications

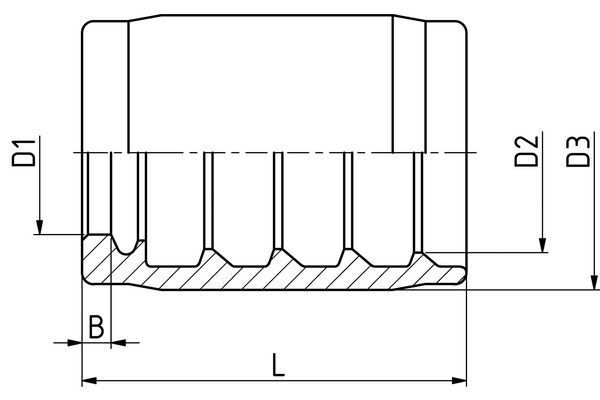

  DN:	38
  Size:	24
  Inch:	1.1/2
  D2 [mm]:	62,0
  Thread + standard:	Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
  L [mm]:	68,0
  b [mm]:	4,3
  D [mm]:	44,4
  D1 [mm]:	51,3
  Connection name Indunorm:	XV..C
  Material:	Free cutting steel
  Material:	free cutting steel
  Resistance against red rust [h]:	500
  Resistance against white rust [h]:	96
  Surface:	ZnNi
  Type of fittings:	Universal series XV
  application:	Swage ferrule
