XV04P3W
XV..P3W

Product info

• Specifications

  DN:	06
  Size:	04
  Inch:	1/4

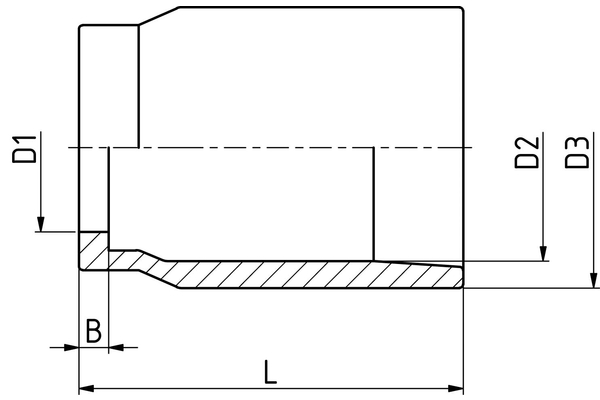

  D2 [mm]:	18,0
  Thread + standard:	Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
  L [mm]:	30,0
  D [mm]:	10,5
  D1 [mm]:	14,0
  Connection name Indunorm:	XV..P3W
  Material:	Free cutting steel
  Material:	free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
  application:	Ferrule, no-skive
