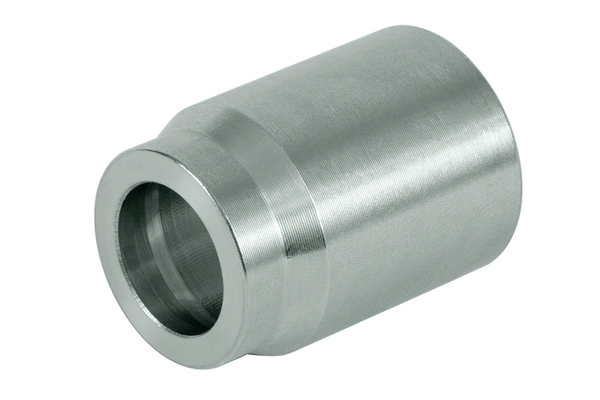

XV10P3W
XV..P3W

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8

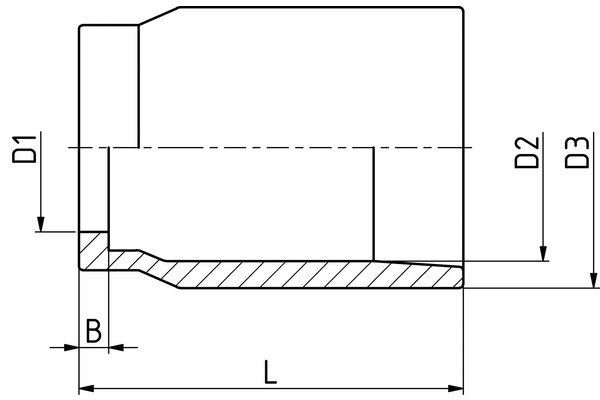

  D2 [mm]:	30,0
  Thread + standard:	Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
  L [mm]:	37,5
  D [mm]:	20,5
  D1 [mm]:	25,0
  Connection name Indunorm:	XV..P3W
  Material:	Free cutting steel
  Material:	free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
  application:	Ferrule, no-skive
