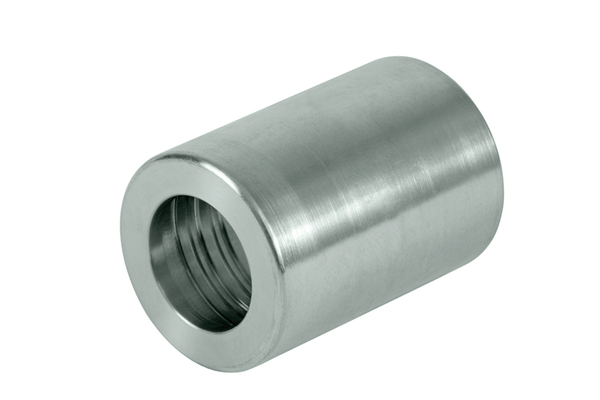

XV06R2
XV..R2

Product info

• Specifications

  DN:	10
  Size:	06
  Inch:	3/8

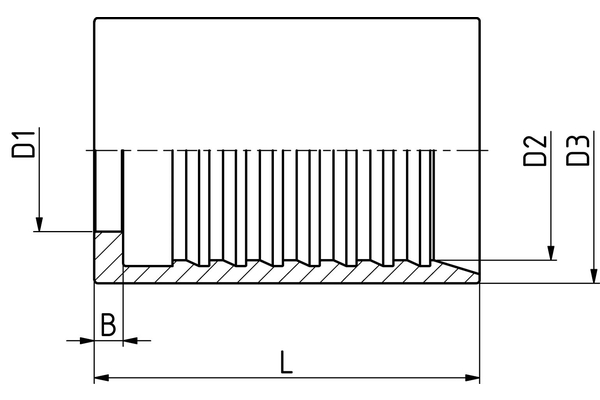

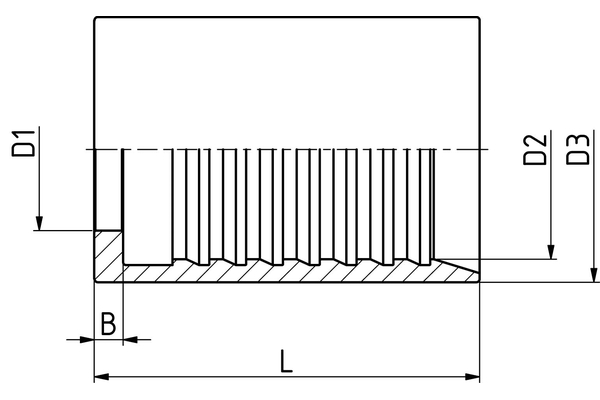

  D2 [mm]:	23,0
  Thread + standard:	Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
  L [mm]:	33,3
  D [mm]:	14,0
  D1 [mm]:	19,0
  Connection name Indunorm:	XV..R2
  Material:	Free cutting steel
  Material:	free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
  application:	Ferrule, no-skive
