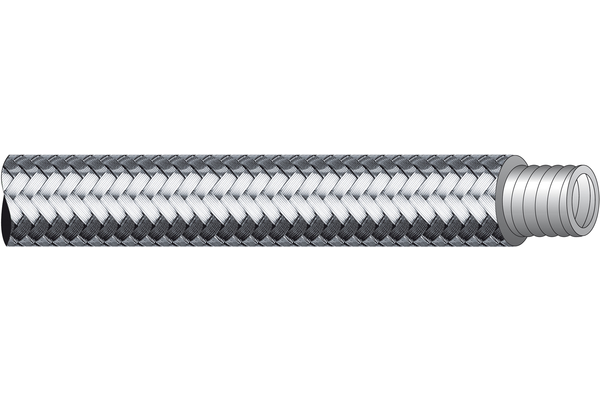

TEF3W40-H - PTFE hose with curled inner layer TEF3W-H

Product info

DN:	38
Size:	24
Inch:	1.1/2"
Outer Ø [mm]:	49,0
Inner Ø [mm]:	38,9
bending radius [mm]:	152
working pressure [bar]:	30
burst pressure [bar]:	90
Safety factor:	3:1
Weight [kg]:	0,952
Color inner tube:	white
Inner tube:	Convoluted, seamless extruded PTFE
MSHA-Approval:	no
Media:	media compatibility on request
Note:	Working pressure is related to temperature. Please use pressure-temperature-curve to calculate allowed working pressure according to your application
Reinforcement:	1 stainless steel wire braid (AISI 304 / 1.4301)
Temperature range [°C]:	- 60 ° C to + 260 ° C; Resistance on request (technik@indunorm.de)
application:	Highly flexible delivery hose for applications in hydraulics and the use of aggressive and hot or cold liquids
max operating temperature [°C]:	+260
number of layers:	1

Benefit

Very high temperature range in conjunction with low bending radius. Can be used as a transfer (conveying) hose in the chemical industry (eg adhesive technology, solvent technology, fuel lines). Can be assembled with fittings of the universal program XV in steel or stainless steel.

Practical tip

When using our special ferrules the usual masking of the dividing line with fabric tape can be dispensed. However, the ends should be secured during storage so that damage to the inner layer is prevented. By this method no danger to personnel is obtained.
