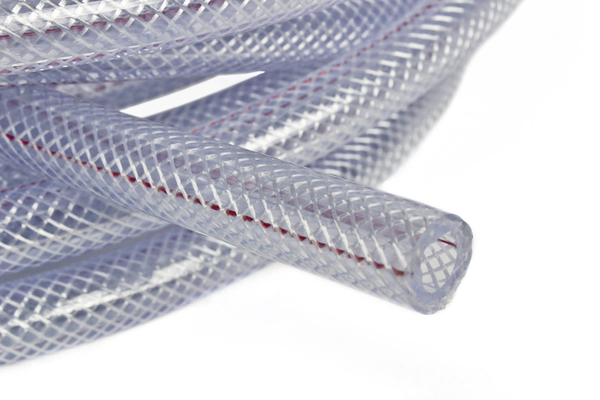

PVC-SCHLAUCH-16X24MM
PVC hose with fabric insert

Product info

• Specifications

  DN:	16
  Outer Ø [mm]:	24,0
  Inner Ø [mm]:	16,0
  bending radius [mm]:	128
  working pressure [bar]:	10-20
  burst pressure [bar]:	30-60
  Weight [kg]:	0,310
  hose length [m]:	50
  Color cover:	transparent
  Color inner tube:	transparent
  Cover:	PVC
  Inner tube:	PVC
  MSHA-Approval:	no
  Media:	compressed air, water, industrial gas and chemicals
  Norm/Standards:	RoHS, ISO 1307
  Reinforcement:	Textile braid
  Temperature range [°C]:	-15°C to +60°C
  max operating temperature [°C]:	+60°C
  number of layers:	1
