TP16FS12

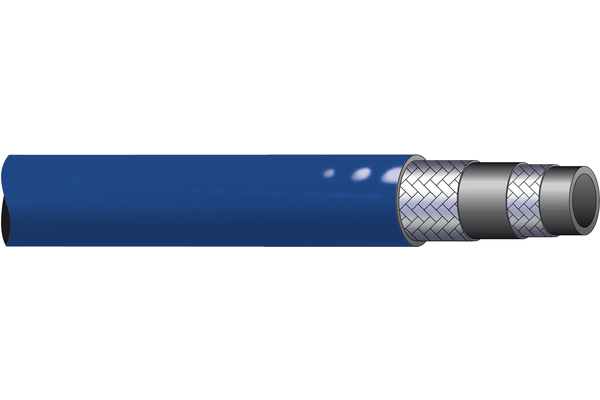

Paintspray hose TP16FS

Art. No.: TP16FS12

List number: 26261300

Paint spraying hose for corrosive media, paint spraying equipment and 2 components PU foam (polyol and isocyanate)

To accessories

Product info

Technical data

DN:	12
Size:	08
Inch:	1/2
Outer Ø [mm]:	20,2
Inner Ø [mm]:	13,0
bending radius [mm]:	85
working pressure [bar]:	300
burst pressure [bar]:	1200
Safety factor:	4:1
Standard ferrule:	XV08R2
Weight [kg]:	0,440
Static test pressure [bar]:	300
Color cover:	blue
Color inner tube:	black
Cover:	Polyurethan
Inner tube:	Seamless extruded polyamide tube (PA12)
MSHA-Approval:	no
Media:	Airless applications of paint industry, solvents and other chemicals, for air and water-based media
Norm/Standards:	Fulfills or exceeds SAE 100R2 with regard to the operating pressure
Reinforcement:	2 layers of high tensile, brass plated steel wire, antifriction liner to improve the pulse load
Temperature range [°C]:	- 40 ° C to + 100 ° C; isocyanate; + 70 ° C for air and water-based media
application:	Paint spray systems
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Due to the high quality inner layer PA12 suitable for many aggressive media. In the DN 16 the hose has a unique advantage combination of high pressure load and small bending radius.
