Product info
-
Technical data

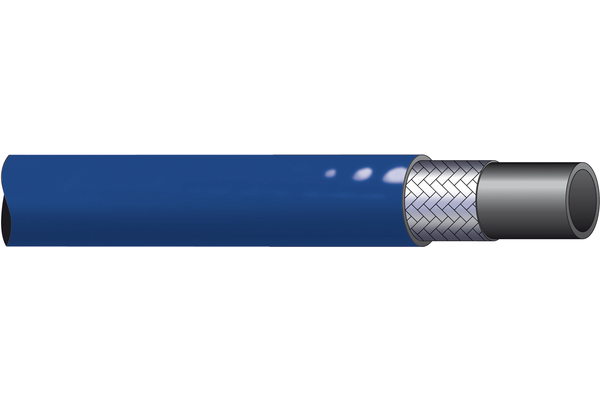

DN: 19 Size: 12 Inch: 3/4 Outer Ø [mm]: 25,8 Inner Ø [mm]: 19,5 bending radius [mm]: 145 working pressure [bar]: 115 burst pressure [bar]: 460 Safety factor: 4:1 Standard ferrule: XV12R1 Weight [kg]: 0,425 Static test pressure [bar]: 230 Color cover: blue Color inner tube: black Cover: Polyurethan Inner tube: Seamless extruded polyamide tube (PA6) MSHA-Approval: no Media: Airless applications of paint industry, solvents and other chemicals, for air and water-based media Norm/Standards: Meets or exceeds EN853 1ST, EN 857 1SC, SAE 100R1 with regard to the operating pressure Reinforcement: 1 layer of high tensile, brass plated steel wire Temperature range [°C]: - 40 ° C to + 100 ° C; Airless applications of paint industry, solvents and other chemicals, + 70 ° C for air and water-based media application: Paint spray systems max operating temperature [°C]: +100°C number of layers: 1
