SP-COMPACTPLUS2-06RH

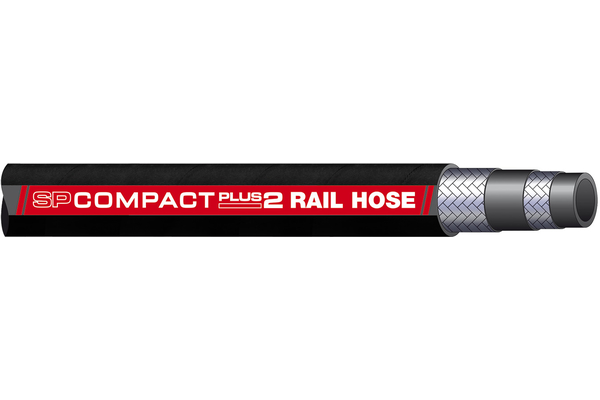

Braided hose SUPER-POWER® SP-COMPACTplus2 RAIL HOSE

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Outer Ø [mm]:	13,4
  Inner Ø [mm]:	6,6
  bending radius [mm]:	45
  working pressure [bar]:	450
  burst pressure [bar]:	1800
  Safety factor:	4:1
  Standard ferrule:	XVN04

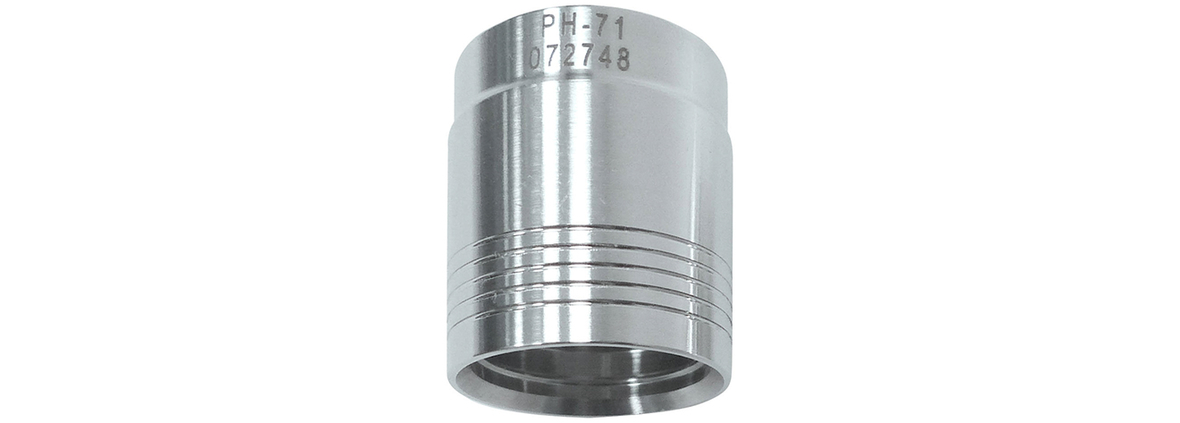

  Standard ferrule stainless steel:	XP-P5-04VA
  Weight [kg]:	0,27
  Static test pressure [bar]:	900
  Outer Ø max. [mm]:	14,2
  Braid diameter [mm]:	11,4
  Approvals:	EN857, EN 45545-2
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	EXCEEDS EN 857 - 2SC. Meets EN 45545-2 (HL2-R23)
  Reinforcement:	steel wire braid, optimized quality with high tensile strength
  Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C;
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	2
