SP1PLUS20RH

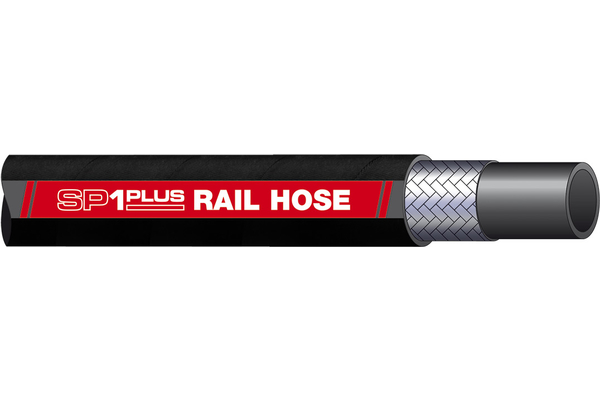

Braided hose SP1plus RAIL HOSE

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Outer Ø [mm]:	26,1
  Inner Ø [mm]:	19,5
  bending radius [mm]:	120
  working pressure [bar]:	125
  burst pressure [bar]:	500
  Safety factor:	4:1

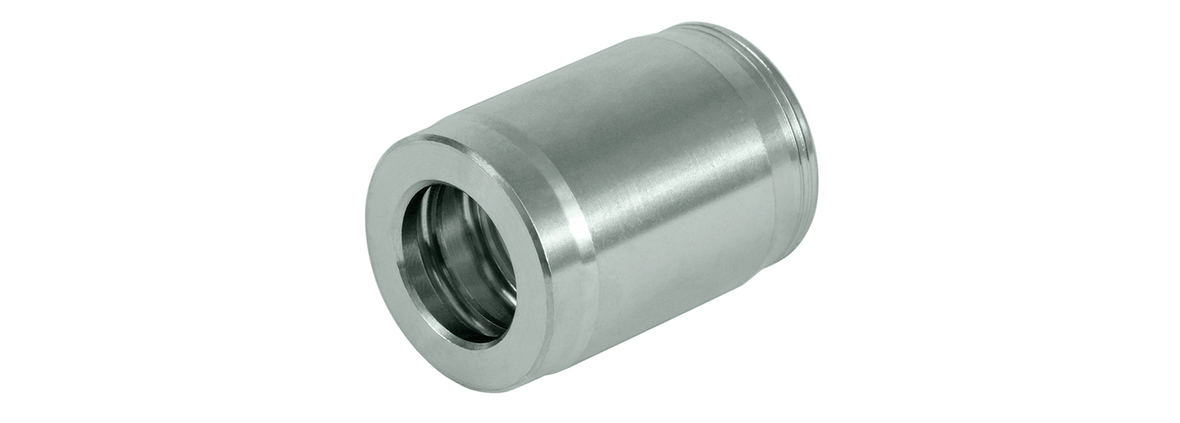

  Standard ferrule:	XV12C

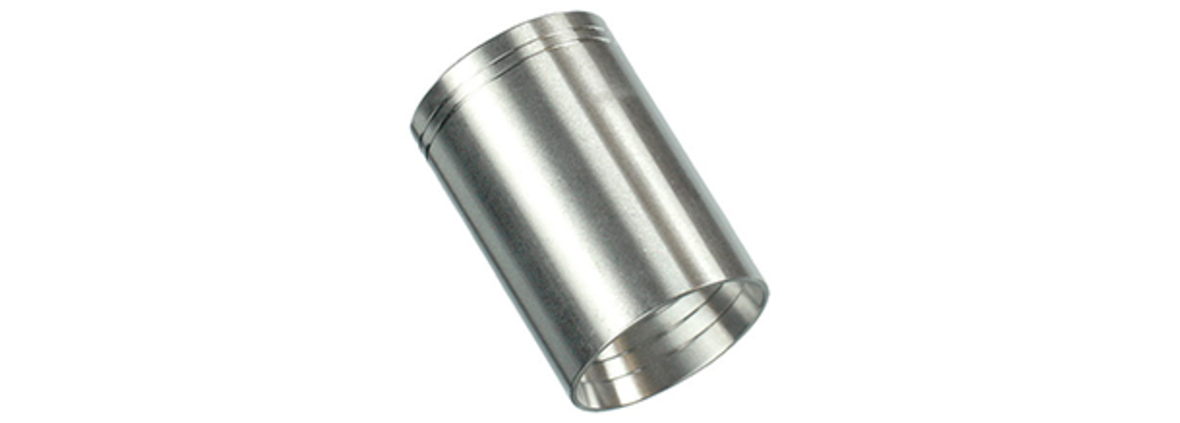

  Standard ferrule stainless steel:	XP-R7-12VA
  Weight [kg]:	0,49
  Static test pressure [bar]:	250
  Outer Ø max. [mm]:	26,7
  Braid diameter [mm]:	23,9
  Approvals:	EN857, EN 45545-2
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic Fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	exceeds EN857-1SC, meets EN45545-2 (HL2-R23)
  Reinforcement:	Steel wire braid, optimized quality with highest tensile strength
  Temperature range [°C]:	-40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	1
