SP2PLUS2-06

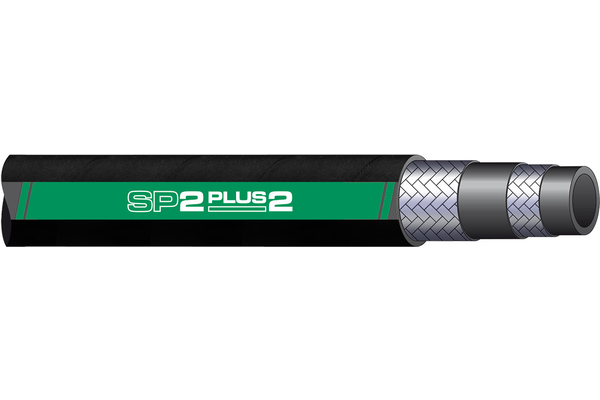

Braided hose SP2plus2

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Outer Ø [mm]:	13,3
  Inner Ø [mm]:	6,6
  bending radius [mm]:	55
  working pressure [bar]:	480
  burst pressure [bar]:	1920
  Safety factor:	4:1
  Standard ferrule:	XV04C
  Standard ferrule stainless steel:	XP-P1-04VA
  Weight [kg]:	0,27
  Static test pressure [bar]:	960
  Outer Ø max. [mm]:	14,2
  Braid diameter [mm]:	11,5
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EXCEEDS EN 857 - 2SN
  Reinforcement:	High tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C short-term + 120 ° C; Water and water-based media up to max. + 70 ° C
  application:	High pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
