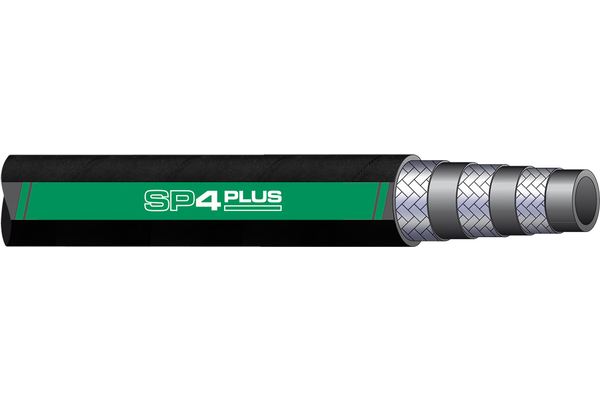

SP4PLUS10 - Braided hose SP4plus | Indunorm Hydraulik Shop

Product info

DN:	10
Size:	06
Inch:	3/8
Outer Ø [mm]:	20,9
Inner Ø [mm]:	9,9
bending radius [mm]:	120
working pressure [bar]:	500
burst pressure [bar]:	2000
Safety factor:	4:1
Standard ferrule:	XV06D/4L
Weight [kg]:	0,66
Static test pressure [bar]:	1000
Braid diameter [mm]:	16,8
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EXCEEDS EN 856 - 4SP
Reinforcement:	3 layer of high tensile, brass plated steel wire
Temperature range [°C]:	- 40 ° C to + 100 ° C short-term + 120 ° C; Water and water-based media up to max. + 70 ° C
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	3

Benefit

Storage cost savings by using the universal program XV. High abrasion resistance. High flexibility (bending radius up to 30% under EN 856, 4SP hose) with good kink resistance. Significantly higher operating pressures than the 4SP hose (according to EN 856).

Practical tip

Very well suited for the high demands in forestry, civil engineering and industry. Ideal for multi spiral applications (4SP), where small bending radiuses are required! At high pulse loads e.g. hammer- or test-rig applications, we recommend the use of multi spiral hoses and fittings with pull-out protection. "

Reserve technical changes.
