2TE12

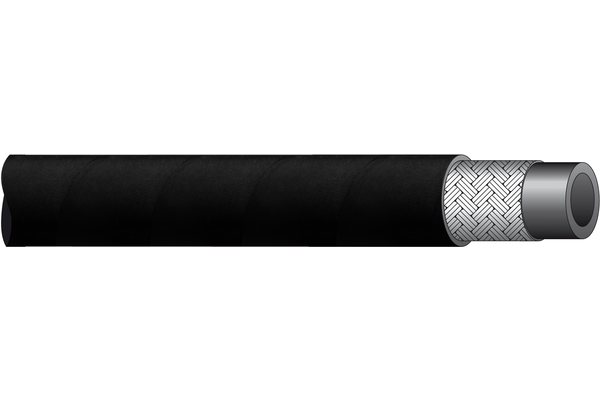

Textile hose 2TE

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Outer Ø [mm]:	19,7
  Inner Ø [mm]:	12,7
  bending radius [mm]:	70
  working pressure [bar]:	58
  burst pressure [bar]:	230
  Safety factor:	4:1

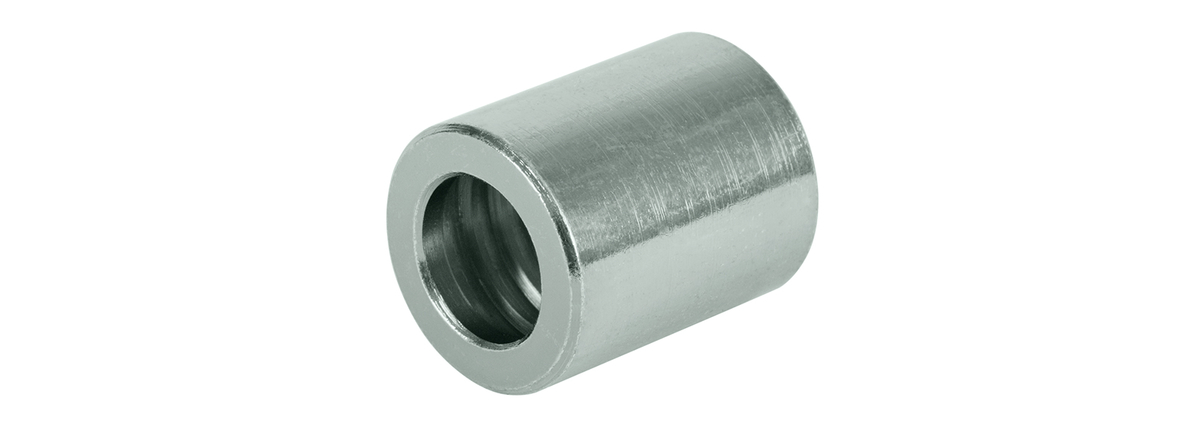

  Standard ferrule:	XVTE08
  Weight [kg]:	0,240
  Static test pressure [bar]:	116
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 854 - 2 TE
  Reinforcement:	Textile braid, single layer
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  max operating temperature [°C]:	+100°C
  number of layers:	1
