2TE16
Textile hose 2TE

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Outer Ø [mm]:	23,9
  Inner Ø [mm]:	16,0
  bending radius [mm]:	90
  working pressure [bar]:	50
  burst pressure [bar]:	200
  Safety factor:	4:1

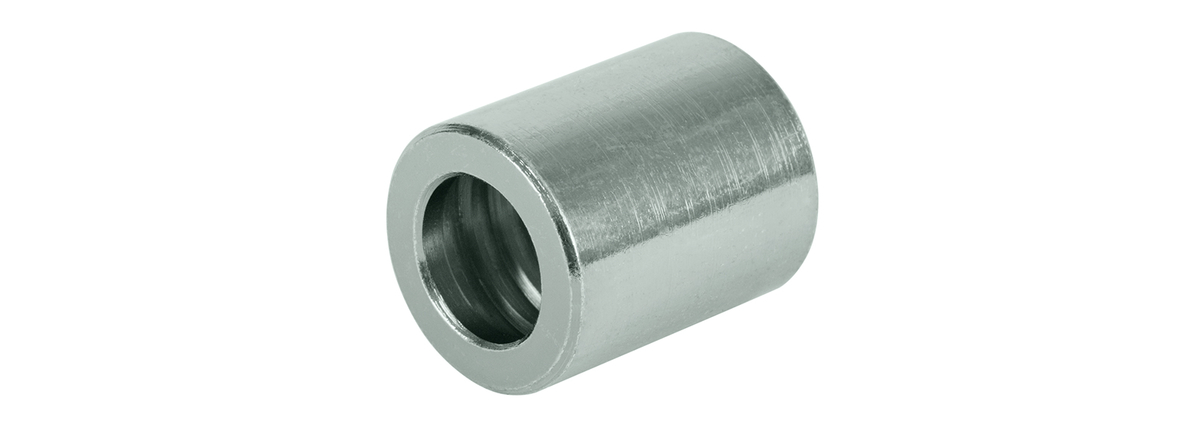

  Standard ferrule:	XVTE10
  Weight [kg]:	0,320
  Static test pressure [bar]:	100
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 854 - 2 TE
  Reinforcement:	Textile braid, single layer
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  max operating temperature [°C]:	+100°C
  number of layers:	1
