Product info
-
Technical data

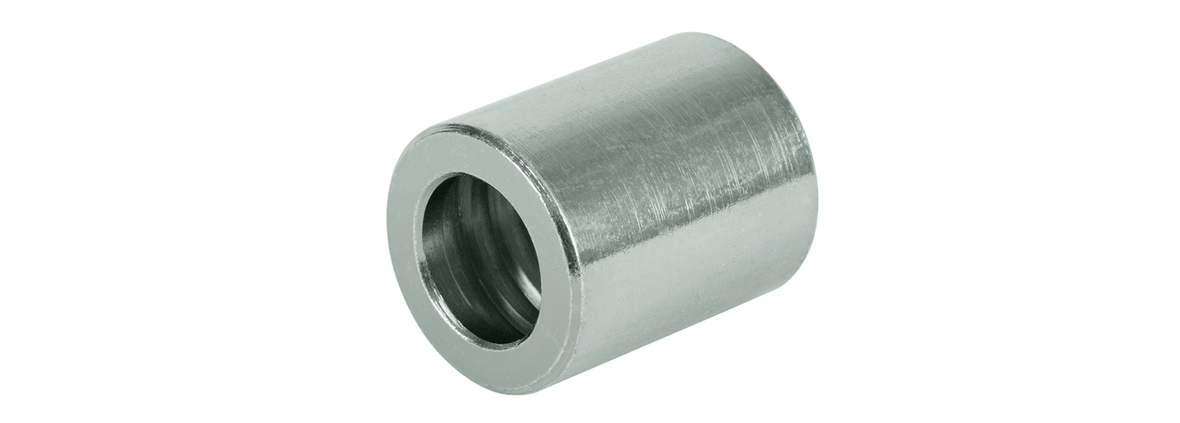

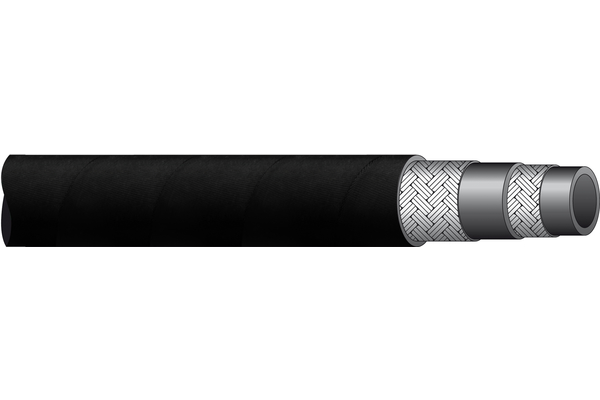

DN: 51 Size: 32 Inch: 2 Outer Ø [mm]: 62,3 Inner Ø [mm]: 50,8 bending radius [mm]: 300 working pressure [bar]: 33 burst pressure [bar]: 160 Safety factor: 4:1 Standard ferrule: XVTE32 Weight [kg]: 1,280 Static test pressure [bar]: 66 Outer Ø max. [mm]: 64,3 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 854 - 3 TE Reinforcement: Textile braid, double layer Temperature range [°C]: - 40 ° C to + 100 ° C max operating temperature [°C]: +100°C number of layers: 2
