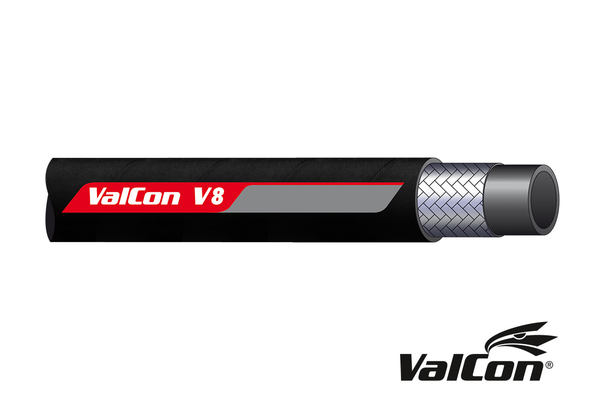

V8-1SC10 - Valcon® Braided hose V8-1SC (EN 857 - 1SC)

DN:	10
Size:	6
Inch:	3/8
bending radius [mm]:	90
working pressure [bar]:	180
burst pressure [bar]:	720
Safety factor:	4:1
Standard ferrule:	VC2-06
Weight [kg]:	0,26
Static test pressure [bar]:	360
Braid diameter max [mm]:	14,5
Inner diameter min [mm]:	9,3
Braid diameter min [mm]:	12,7
Outer Ø max. [mm]:	max. 16,9
Inner diameter max [mm]:	10,1
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 857 - 1SC
Reinforcement:	High tensile steel wire
Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	medium pressure applications
max operating temperature [°C]:	+100°C
number of layers:	1
