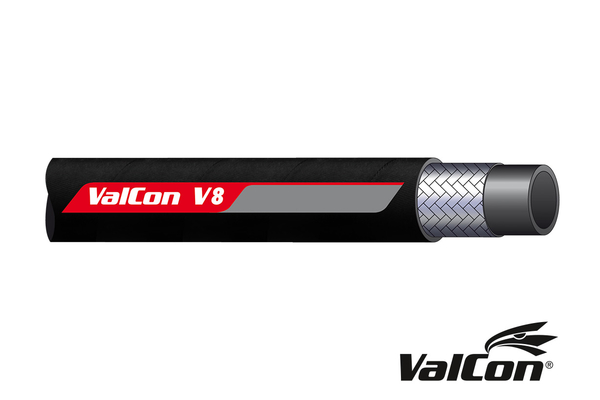

V8-1SC16 - Valcon® Braided hose V8-1SC (EN 857 - 1SC)

DN:	16
Size:	10
Inch:	5/8
bending radius [mm]:	150
working pressure [bar]:	130
burst pressure [bar]:	520
Safety factor:	4:1
Standard ferrule:	VC2-10
Weight [kg]:	0,42
Static test pressure [bar]:	260
Braid diameter max [mm]:	21,0
Inner diameter min [mm]:	15,5
Braid diameter min [mm]:	19,8
Outer Ø max. [mm]:	max. 23,0
Inner diameter max [mm]:	16,7
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 857 - 1SC
Reinforcement:	High tensile steel wire
Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	medium pressure applications
max operating temperature [°C]:	+100°C
number of layers:	1
