V8-1SN25

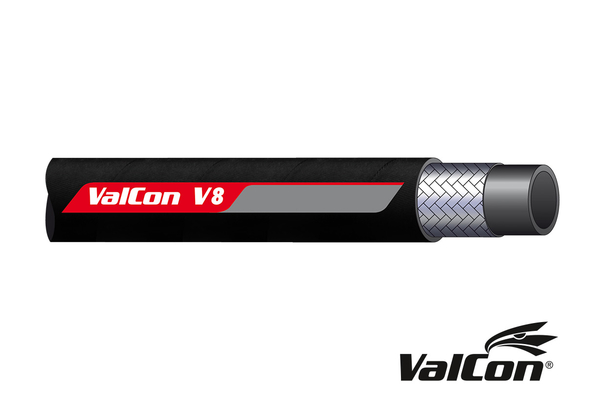

Valcon® Braided hose V8-1SN

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  bending radius [mm]:	300
  working pressure [bar]:	88
  burst pressure [bar]:	352
  Safety factor:	4:1
  Standard ferrule:	VC2-16
  Static test pressure [bar]:	176
  Vacuum [bar]:	-0,8
  Inner diameter min [mm]:	25,0
  Outer Ø max. [mm]:	36,6
  Inner diameter max [mm]:	26,4
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 1SN
  Reinforcement:	High tensile steel wire
  Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
  application:	medium pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	1
