V8-2SC08

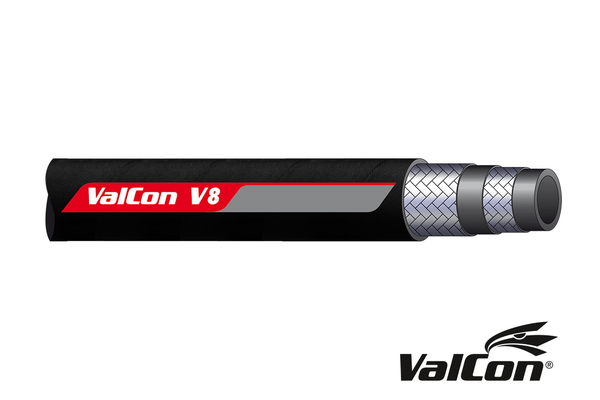

Valcon® Braided hose V8-2SC

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Outer Ø [mm]:	max. 16,0
  bending radius [mm]:	85
  working pressure [bar]:	350
  burst pressure [bar]:	1400
  Safety factor:	4:1
  Standard ferrule:	VC2-05
  Static test pressure [bar]:	700
  Outer Ø max. [mm]:	16,0
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 857 - 2SC
  Reinforcement:	High tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
