V8-2SC25

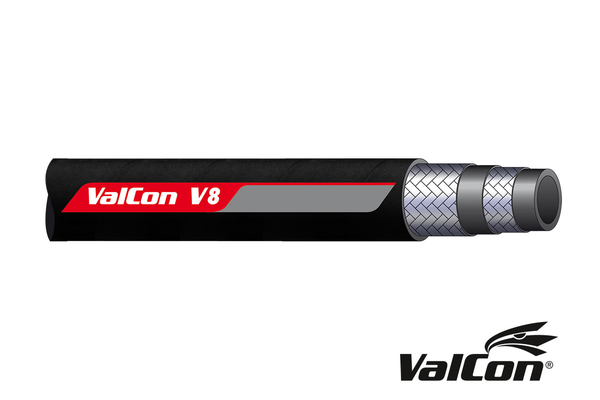

Valcon® Braided hose V8-2SC

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Outer Ø [mm]:	max. 36,6
  bending radius [mm]:	250
  working pressure [bar]:	165
  burst pressure [bar]:	660
  Safety factor:	4:1
  Standard ferrule:	VC2-16
  Static test pressure [bar]:	330
  Outer Ø max. [mm]:	36,6
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 857 - 2SC
  Reinforcement:	High tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
