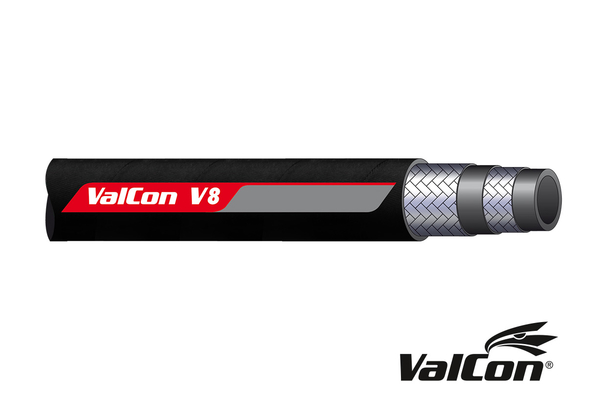

Valcon® Braided Hose V8-2SN-K

Hydraulic hose for high-pressure applications in hydraulics, exceeds EN 857 - 2SC

To accessories

Detail

Art. No.

V8-2SN-K06

V8-2SN-K08

V8-2SN-K10

V8-2SN-K12

V8-2SN-K16

V8-2SN-K20

V8-2SN-K25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

13,3

15,2

17,2

20,6

24,2

28,3

35,9

Inner Ø [mm]

6,6

8,2

9,8

13,2

16,3

19,5

25,7

bending radius [mm]

130

160

210

working pressure [bar]

450

420

385

350

290

280

200

burst pressure [bar]

1800

1680

1540

1400

1160

1120

800

Safety factor

4:1

Standard ferrule

VC1-04

VC1-05

VC1-06

VC1-08

VC1-10

VC1-12

Weight [kg]

0,29

0,36

0,43

0,56

0,68

0,86

1,23

Braid diameter [mm]

11,4

13,2

15,3

18,5

22,1

26,0

33,2

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EXCEEDS EN 857-2SC
Reinforcement:	High tensile steel wire braid
Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	high pressure applications
number of layers:	2

Benefit

Significantly better than the 2SC hose, exceeds the pressure values according to EN 857 by far. Up to 40% tighter bend radius than the 2SC hose. Up to 10 times higher abrasion resistance than the EN-ISO 9645 demands. High ozone resistance.
