V8-2SN06

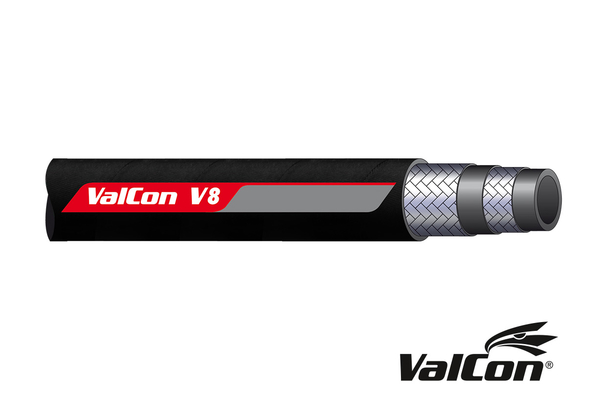

Valcon® Braided hose V8-2SN (EN 853 - 2SN)

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  bending radius [mm]:	100
  working pressure [bar]:	400
  burst pressure [bar]:	1600
  Safety factor:	4:1

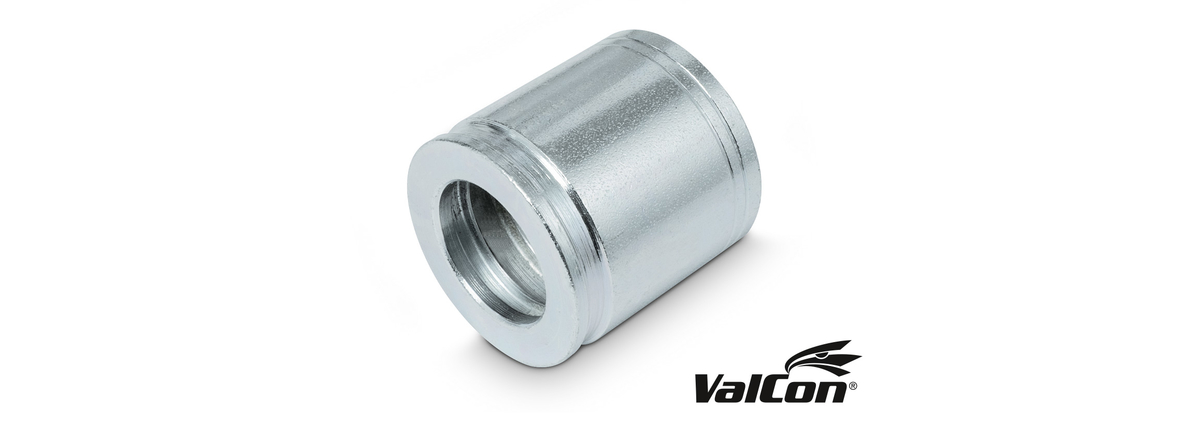

  Standard ferrule:	VC1-04
  Static test pressure [bar]:	800
  Outer Ø max. [mm]:	15,7
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 2SN
  Reinforcement:	High tensile steel wire braid
  Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
